| GENERAL FEATURES |
| Type |
Online Single Phase (VFI) |
| Phases (IN-OUT) |
1-1 |
| Form Factor |
Rack, Tower |
| Rack Units [U] |
2U |
| Power Capacity |
3000VA / 2700W |
| Output Power Factor |
0.90 |
| INPUT |
| Input Voltage Range |
120-276 VAC Depends on Load Level |
| Max THDi |
≤5% |
| Frequency Range |
45Hz – 55Hz or 54Hz – 66Hz |
| Frequency (Synchronized Range) |
45Hz – 55Hz or 54Hz – 66Hz |
| OUTPUT |
| Waveform |
Pure Sine Wave |
| Nominal Output Voltage |
208/220/230/240 VAC |
| THDv |
≤2% @ 100% linear load, ≤5% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) |
±1% |
| Frequency (Battery Mode) |
±0.2Hz |

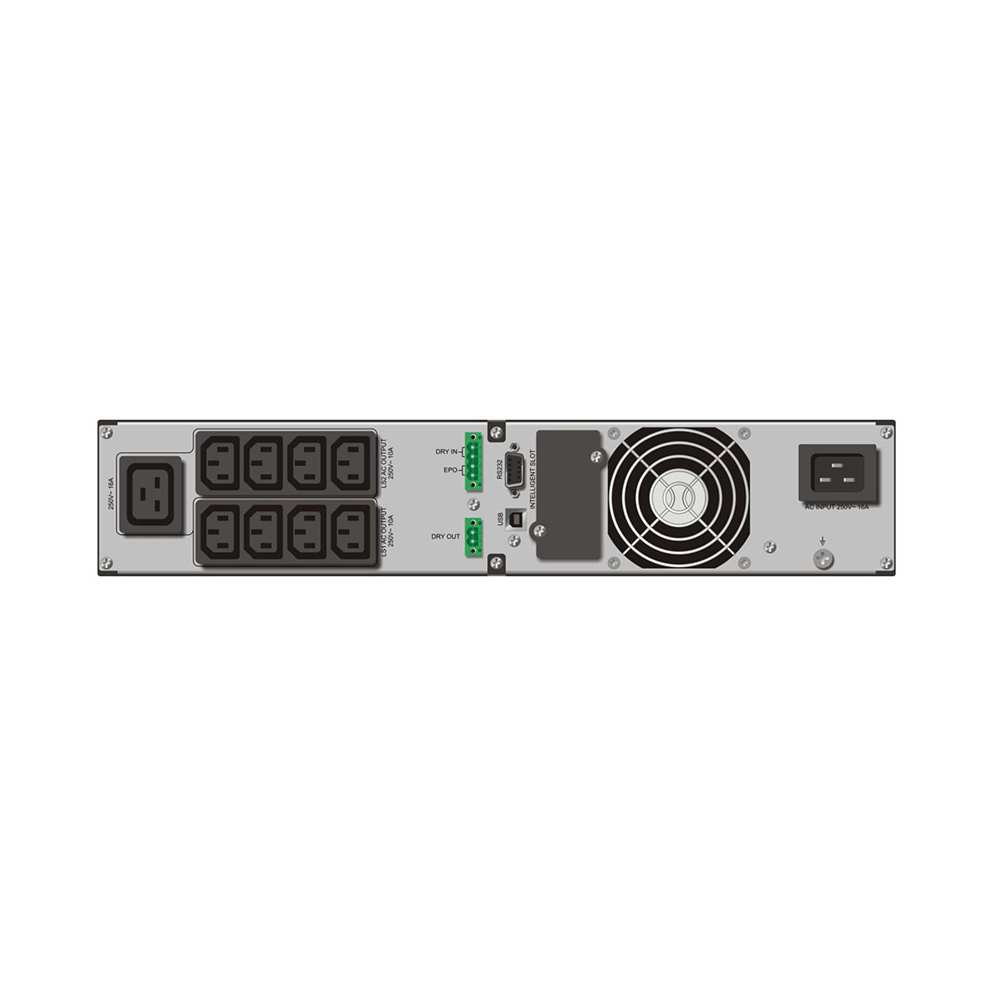

| INPUT & OUTPUT CONNECTORS |
| Input Connector |
C20-UK |
| Output Type |
IEC – UK |
| IEC C13 |
8 |
| IEC C19 |
1 |
| TECHNICAL DETAILS |
| LINE Mode Efficiency [%] (Full Load) |
92.5 |
| Battery Mode Efficiency [%] (Full Load) |
87.0 |
| Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] |
1ms |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] |
0ms |
| Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] |
10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] |
0ms |
| Load Crest Ratio |
3:1 |
| Additional Features |
ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, LCD Display, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, AVR – Automatic Voltage Regulator, External Battery Compatible |
| IEC 62040-3 classification |
VFI-SS-111 |
| BATTERIES AND AUTONOMY |
| Batteries |
6x 12.0V/9.0Ah |
| DC Voltage |
6x 12.0V |
| Recharge Time |
3h to 90% |
| Full Load Backup Time [min] |
3.0 |
| Half Load Backup Time [min] |
10.0 |
| Charger |
1.5A |
| External Battery Pack |
Yes |
| COMMUNICATION |
| Communication |
Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot |
| Software |
WinPower |
| ENVIRONMENT |
| Noise Level |
< 45dB |
| Fan Logic |
Always on, Automatic Speed Control |
| Temperature |
0°C – 40°C |
| Humidity |
0% – 95% RH (non-condensing) |
| IP |
IP 20 |
| LOGISTICS |
| Package Content |
UPS, Manual, USB Cable, RS-232 Cable, Tower Holder, Rack Ears, EPO Plug, 2x IEC Cable, Dry Contact Plug, Input Power Cable |
| Manual Languages |
DE, RU, PL, FR, EN |
| EAN |
4260074974850 |
| Product Dimensions (DxWxH) [mm] |
608 x 438 x 86 mm |
| Product Weight [kg] |
28.6 |
| Package Dimensions (DxWxH) [mm] |
590 x 790 x 236 mm |
| Package Weight [kg] |
31.2 |
| Pcs. per Outer Carton |
1 |
| Pcs. per Layer |
2 |
| Pcs. per Pallet |
16 |
| Pcs. per Pallet [Oversized] |
16 |
