VI 2200 SH IEC UK | PowerWalker Asia

VI SH IEC UK(650-2200)

VI 2200 SH IEC UK

Output Type: IEC – UK / Series Variation: SH

Model: VI 2200 SH IEC UK
SKU: 10120060

Human Interface Device (HID) Supported
Data Line Surge Protection
Several Outlets – Type F, Type E, IEC also with UK Input Cable

The PowerWalker VI SH / SHL provide a comprehensive protection and a high-power density in a small and economic package for a Line-Interactive UPS. It is equipped with a voltage stabilizer; this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.

These series is equipped with a stronger charger that reaches 90% of the battery capacity in 2-4h. With a Human Interface Device (HID) support for USB communication it allows quick and easy setup with any operating system. In addition, this UPS provides RJ-11 surge protection.

Highlight of the PowerWalker VI SHL unit is the integrated LCD. Which lets you follow the usual UPS detailed information without the need of a second device to monitor the UPS.

GENERAL FEATURES
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	2200VA / 1200W
Output Power Factor	0.55
INPUT
Input Voltage Range	170-280 VAC ±7%
Frequency Range	50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform	Simulated Sine Wave
Nominal Output Voltage	230 VAC
Voltage Regulation (Battery Mode)	±10%
Frequency (Battery Mode)	±1Hz

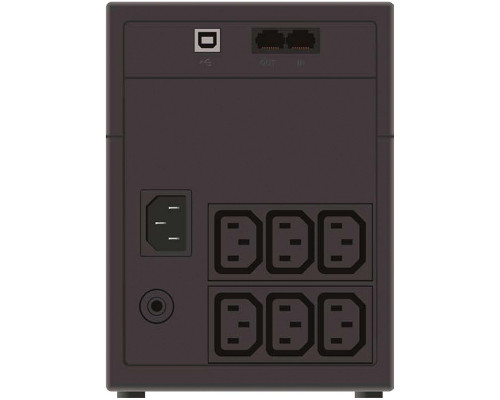

INPUT & OUTPUT CONNECTORS
Input Connector	C14-UK
Output Type	IEC – UK
IEC C13	6
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	95.0
Battery Mode Efficiency [%] (Full Load)	60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	4-8ms
Data Line Protection	RJ-11 Port, RJ-45 Port (100mbit)
Additional Features	Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VI-SY-333
BATTERIES AND AUTONOMY
Batteries	2x 12.0V/9.0Ah
DC Voltage	2x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	0.5
Half Load Backup Time [min]	5.0
Charger	1.2A
COMMUNICATION
Communication	USB Type B – for Monitoring Software
Software	WinPower
ENVIRONMENT
Noise Level	< 45dB
Fan Logic	Fan Off: LINE Mode and Load < 50% OtherwiseAlways On, Automatic Fan Control (Battery Mode, AVR ON)
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Input Power Cable, Manual, USB Cable, IEC Cable, UPS
Manual Languages	DE, SE, DK, FI, NO, RU, PL, FR, PT, CZ, EN
EAN	4260074975475
Product Dimensions (DxWxH) [mm]	364 x 139 x 195 mm
Product Weight [kg]	10.2
Package Dimensions (DxWxH) [mm]	452 x 230 x 292 mm
Package Weight [kg]	11.1
Pcs. per Outer Carton	1
Pcs. per Layer	7
Pcs. per Pallet	42
Pcs. per Pallet [Oversized]	42
