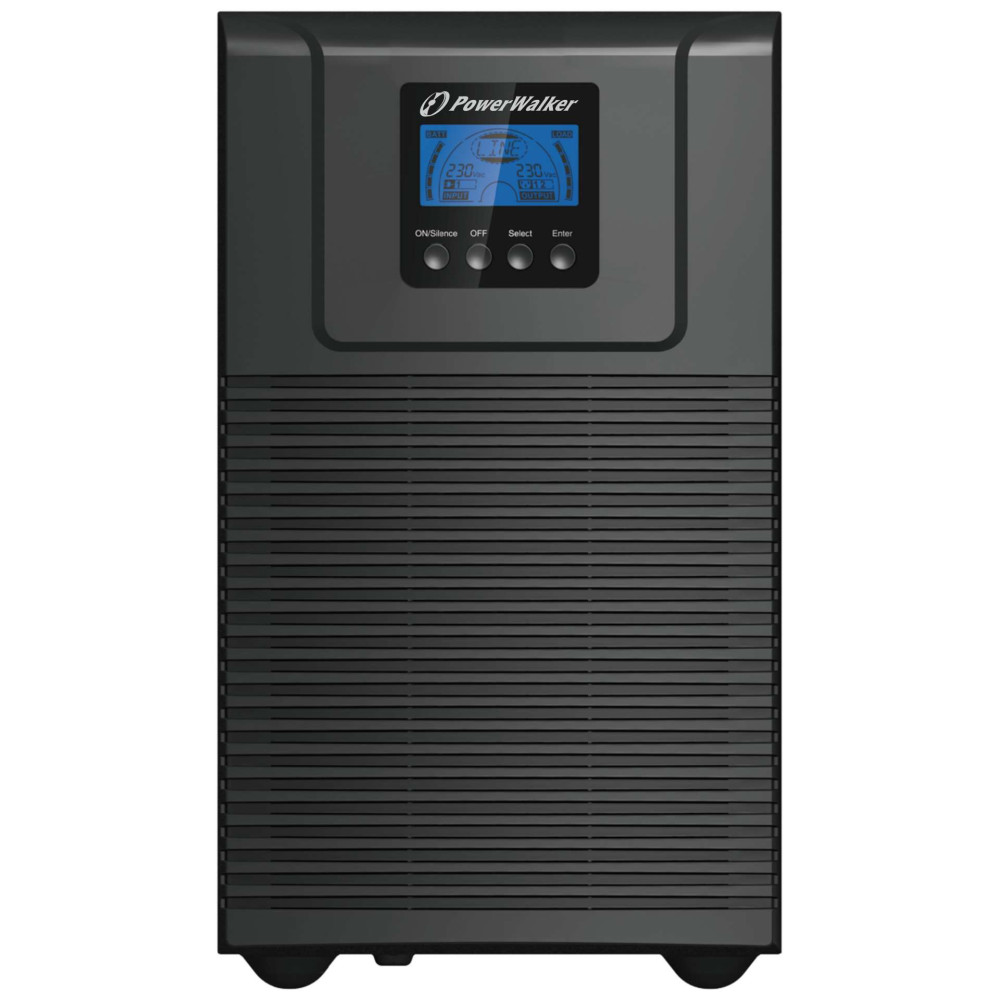

VFI 2000 TGB

Output Type: IEC / Series Variation: TGB

Model: VFI 2000 TGB
SKU: 10122099

An All-Rounder Series
Human Interface Device (HID) compatible USB connection (no additional drivers needed)
Wide Input Voltage Range for All Environments
It supports AC Generators
It include an Intelligent Slot

The PowerWalker VFI TG/TGB/TGS is a professional and versatile Online UPS solution for almost all single-phase applications (suitable for security systems for kiosks, ATMs and as well as high-level security systems, where additional software is not allowed (i.e. banking).

The UPS is available in 3 different Variations:

TG: ONLY with internal batteries for regular backup times

TGB: with internal batteries and connection for external battery packs for extended autonomy times

TGS: without internal batteries, but with a stronger Charger for external battery packs and big capacity batteries (non-series batteries)

Specification Downloads

GENERAL FEATURES
Type	Online Single Phase (VFI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	2000VA / 1800W
Output Power Factor	0.90
INPUT
Input Voltage Range	176-300 VAC or 80-285 VAC in Bypass Mode
Max THDi	≤5%
Frequency Range	40Hz – 70Hz
Frequency (Synchronized Range)	45Hz – 55Hz or 54Hz – 66Hz
OUTPUT
Waveform	Pure Sine Wave
Nominal Output Voltage	220/230/240 VAC
THDv	≤2% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)	±2%
Frequency (Battery Mode)	±0.05Hz

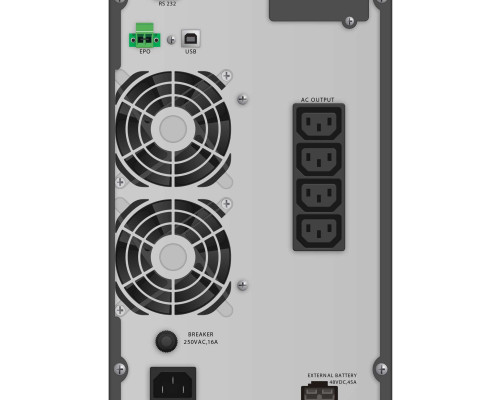

INPUT & OUTPUT CONNECTORS
Input Connector	C14
Output Type	IEC
IEC C13	4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	90.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]	10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]	10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	4ms
Load Crest Ratio	3:1
Additional Features	ECO Mode Available, CVCF Mode Available, LCD Display, Battery Pack Available, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VFI-SS-111
BATTERIES AND AUTONOMY
Batteries	4x 12.0V/9.0Ah
DC Voltage	4x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	3.8
Half Load Backup Time [min]	11.0
Charger	1.5A
External Battery Pack	Yes
COMMUNICATION
Communication	USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software	WinPower
ENVIRONMENT
Noise Level	< 50dB
Fan Logic	Always on, Automatic Speed Control
Temperature	0°C – 40°C
Humidity	0% – 95% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Input Power Cable, Manual, 2x IEC Cable, USB Cable, UPS
Manual Languages	DE, PL, EN
EAN	4260074979763
Product Dimensions (DxWxH) [mm]	399 x 190 x 328 mm
Product Weight [kg]	17.2
Package Dimensions (DxWxH) [mm]	500 x 324 x 464 mm
Package Weight [kg]	20.0
Pcs. per Outer Carton	1
Pcs. per Layer	7
Pcs. per Pallet	14
Pcs. per Pallet [Oversized]	28
