| GENERAL FEATURES |
| Type |
Online Single Phase (VFI) |
| Phases (IN-OUT) |
1-1 |

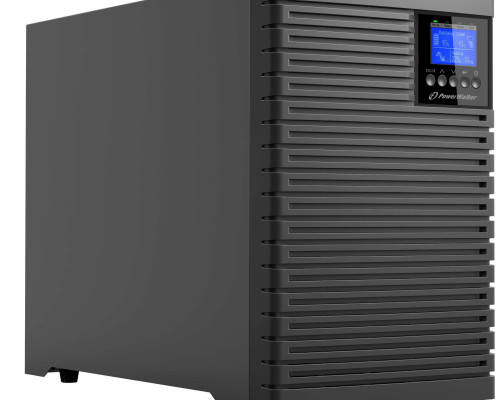

| Form Factor |
Tower |
| Power Capacity |
10000VA / 10000W |
| Output Power Factor |
1.00 |
| INPUT |
| Input Voltage Range |
160-276 VAC at 100% load
110-160VAC range linear between 50-100% load |
| Frequency Range |
40Hz – 70Hz (self-adaptive to 50/60Hz) |
| Frequency (Synchronized Range) |
45Hz – 55Hz at 50Hz nominal
54Hz – 66Hz at 60Hz nominal and >60% rated load |
| OUTPUT |
| Waveform |
Pure Sine Wave |
| Nominal Output Voltage |
208/220/230/240 VAC |
| THDv |
≤1% @ 100% linear load, ≤5% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) |
±1% |
| Frequency (Battery Mode) |
±0.1Hz |

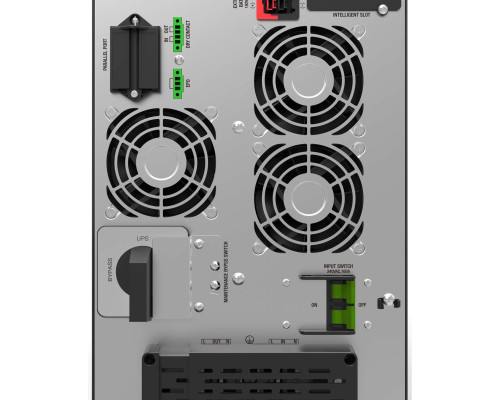

| INPUT & OUTPUT CONNECTORS |
| Input Connector |
Terminal |
| Output Type |
Terminal |
| Terminal Output |
Yes |
| TECHNICAL DETAILS |
| LINE Mode Efficiency [%] (Full Load) |
95.0 |
| Battery Mode Efficiency [%] (Full Load) |
93.0 |
| Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] |
10ms |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] |
0ms |
| Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] |
10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] |
0ms |
| Load Crest Ratio |
3:1 |
| Bypass |
Manual – Bypass |
| Additional Features |
Earthing System Available, ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, Parallel Connectivity, LCD Display, Unity Power Factor 1.0, Input Breaker, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, External Battery Compatible |
| IEC 62040-3 classification |
VFI-SS-111 |
| BATTERIES AND AUTONOMY |
| Batteries |
Batteries are not Included |
| DC Voltage |
16x 12.0V |
| Additional Batteries Information |
Designed to work with External Batteries |
| Charger |
0-12A [4A] |
| External Battery Pack |
Yes |
| COMMUNICATION |
| Communication |
Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot |
| Software |
WinPower |
| Parallel Operation [Units] |
3 |
| ENVIRONMENT |
| Noise Level |
< 55dB |
| Fan Logic |
Always on, Automatic Speed Control |
| Temperature |
0°C – 40°C (40°C – 50°C @50% load) |
| Humidity |
0% – 95% RH (non-condensing) |
| IP |
IP 20 |
| LOGISTICS |
| Package Content |
Manual, USB Cable, Protective Plates and screws for parallel port, Dry Contact Plug, Parallel Communication Cable, UPS |
| Manual Languages |
EN |
| EAN |
4260074980141 |
| Product Dimensions (DxWxH) [mm] |
452 x 225 x 348 mm |
| Product Weight [kg] |
15.2 |
| Package Dimensions (DxWxH) [mm] |
598 x 332 x 478 mm |
| Package Weight [kg] |
17.5 |
| Pcs. per Outer Carton |
1 |
| Pcs. per Layer |
6 |
| Pcs. per Pallet |
24 |
| Pcs. per Pallet [Oversized] |
24 |
